| Notch Unit with
Gauging |
 |
|
Custom Notch
Designs |
- Pierced Hole and Notch Combined
in one unit.
- Stepped Notch Profiles
- Angles other than 90°
|
|
 |
|
|
Perform Right and
Left Hand Corner Notching
“V” Notching
Edge Notching
Coping
|
|

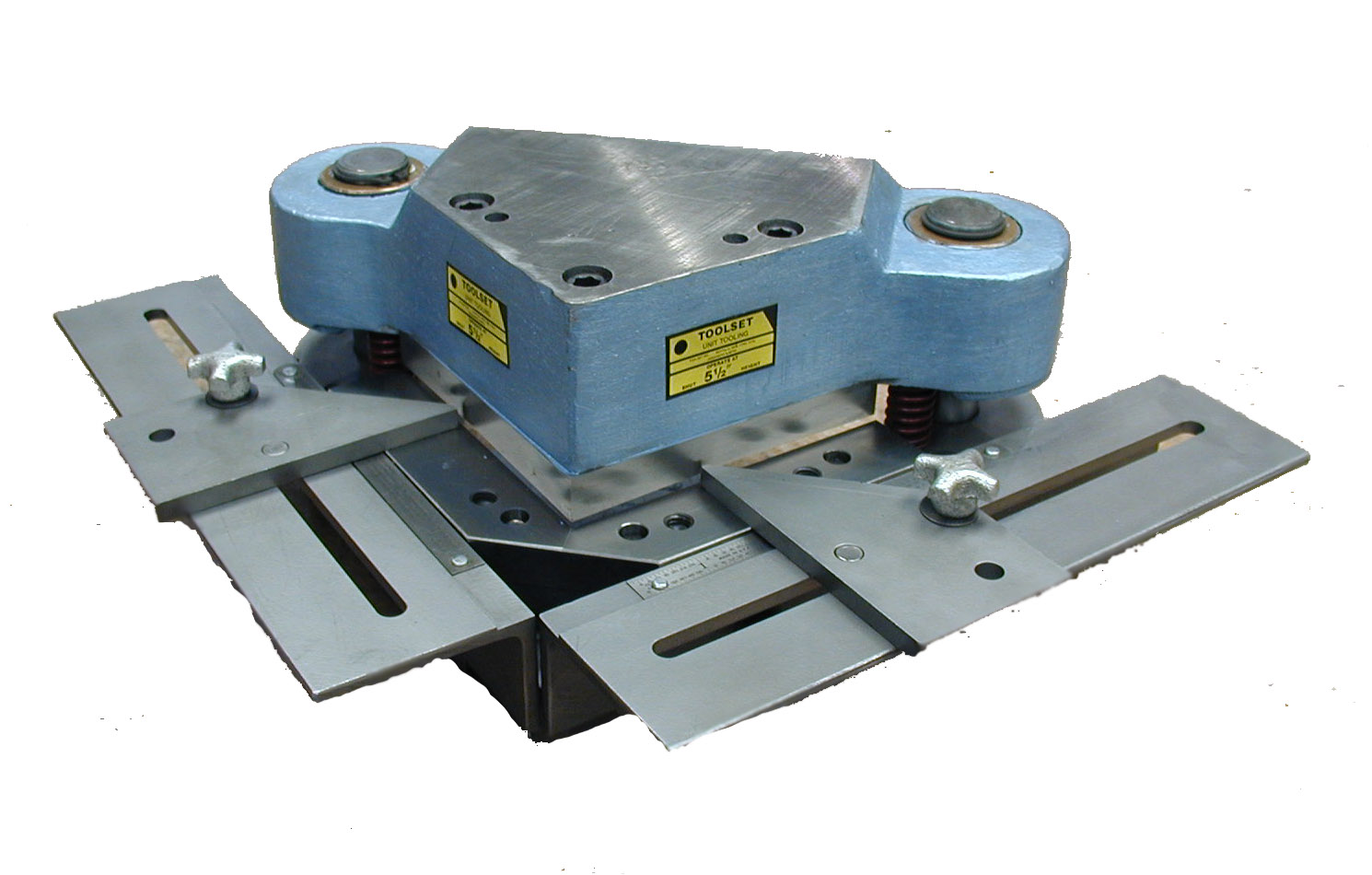

4-in-1
Notching Units
|
| Perform
four notching jobs with one unit: |
90° RH Corner
Notching
90° LH Corner
Notching
90° V Notching
Coping up
to 3”
|
|
Gauges
with
Built-In Scales
and
Adjustable Stops
can be installed
at the Factory
|
All
For the Price of a Single Unit! |
|
You no longer need
buy 4 notching units when one 3” x 3” Model LN - 33- 01 Toolset does
all four jobs for the price of one unit.
|
- Exclusive 2-way
shear on punch blades reduces the normal notching pressure and shock
by as much as 40 percent
- Exposed blades
permit notching or coping sheets, angles, extrusions, etc. Self- contained,
self-aligned “Die-Set” design, - no “cocking” or binding, - maintains
close tolerances. Grease fittings are standard equipment..
- Built-in slug
chute at rear eliminates need for hole in press bed or blocking up
unit.
|
|
|
|
|
Edge
Notching Units
|
|
For edge and
corner notching of flat, angle and shaped stock.
|
| |
| TOOLSET
EDGE NOTCH UNITS |
| Have
wide applications in confined edge notching. They also are used for both
right and left hand corner notching. Punch blades have exclusive Toolset
2-way shear for reducing punching pressure. |
|
| BLADE
DESIGN |
| Toolset
exposed blade design makes it possible to notch or cope sheets, extrusions,
etc. Angles can be notched close to the opposite leg. |
|
| MOUNTING
DESIGN |
| Quickly
mounted on punch presses or press brakes; built-in slug chute eliminates
providing special means for slug removal. |
|
| SIZE
SPECIFICATION |
| They
are made in a range of standard off-the-shelf widths, and can be furnished
with intermediate sizes and special shapes to individual specifications. |
|
| HEIGHTS |
| Toolset
Die heights and shut heights conform to industry standards, thus expediting
their use in combination with hole punching units. |
| |
|
